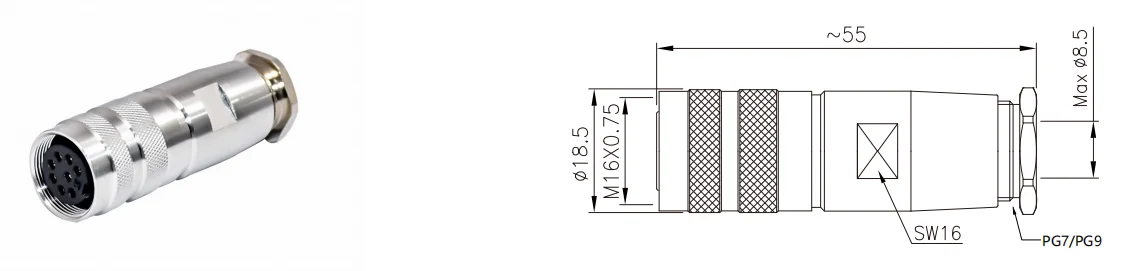

Waterproof Plug M16 Circular Connector PA66 Electrical Ip68 J09 Series 7A

Name: Waterproof Plug M16 Circular Connector PA66 Electrical Ip68 J09 Series 7A
Brand: RIGOAL
Price: 1 USD

Waterproof Plug M16 Circular Connector PA66 Electrical Ip68 J09 Series 7A Manufactures

Brand Name : RIGOAL

Model Number : M16 assembly connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

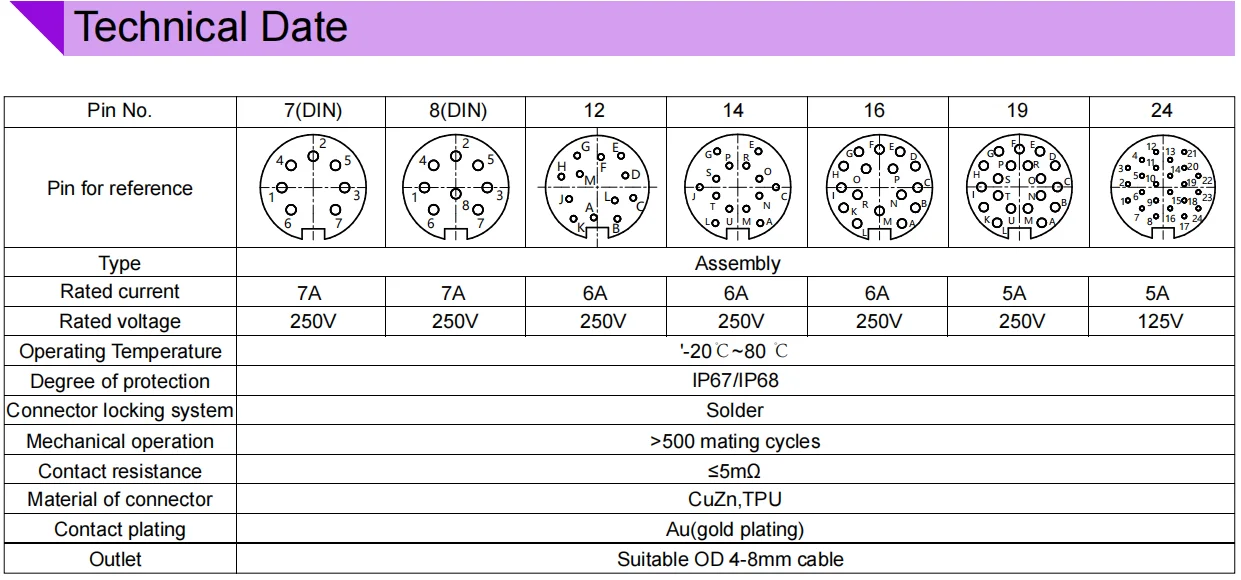

Rated Voltage : 250V

Contact Material : Brass, gold plated

Connector type : Male female Terminals

Temperature range : -40℃ to +95℃

Waterproof rate : IP67

Rated Current : 7A

Insert Material : PA66

Pin : 4pin, 5pin, 8pin, 12pin,16pin

Termination : Solder

Contact Now

Ip67/Ip68 J09 Series 2pin 3pin 4pin 5pin 6pin 7pin 16 Pin Electrical Waterproof Plug M16 Circular Connector

Product Description

Waterproof Plug M16 Circular Connector PA66 Electrical Ip68 J09 Series 7A

connector with CE,ISO,ROHS standard or national standard, strong anti-interference, stable signal transmission performance;
 Aviation
 plug side molding, beautiful shape, with ordinary waterproof performance, long service life. Products are pass strict inspection,
 in line with Rohs standards, satisfies all the requirements for reliability test and the electrical test

Strong acid, alkali, chemical cleaning agent/reagent performance, resistance to oil, coolant, lubricant and emulsion
 propertiesProducts have been widely used in engineering machinery, auto parts production line, electrician electrical systems,
 instrumentation, mineral, oil and gas drilling anticorrosive engineering wind and solar power, water engineering, power
 substation, subways, airports, automatic control equipment, automation systems engineering, and many other fields. Meet user needs
 and exceed customer demand, is the rigoalof electronic service benchmark.

Product Tags:

Waterproof Plug M16 Circular Connector

PA66 Electrical M16 Circular Connector

7A M16 Panel Mount Connector

Waterproof Plug M16 Circular Connector PA66 Electrical Ip68 J09 Series 7A Images
