A Code Straight Molded M5 Waterproof Connector PA GF Male

Name: A Code Straight Molded M5 Waterproof Connector PA GF Male
Brand: RIGOAL
Price: 1 USD

A Code Straight Molded M5 Waterproof Connector PA GF Male Manufactures

Brand Name : RIGOAL

Model Number : m5 molded connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 10

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Pin number : 3pin 4pin

waterproof degree : ip67/68

Cable diameter : 3.5mm~5mm

Rated Current : 1.5A

Jacket Material : PVC/PUR

Rated voltage : 60V

Temperature Range : -40℃~+80℃

Mating Endurance : > 500 cycle

Insulation resistance : ≥100MΩ

Connector insert : PA+GF

Contact Now

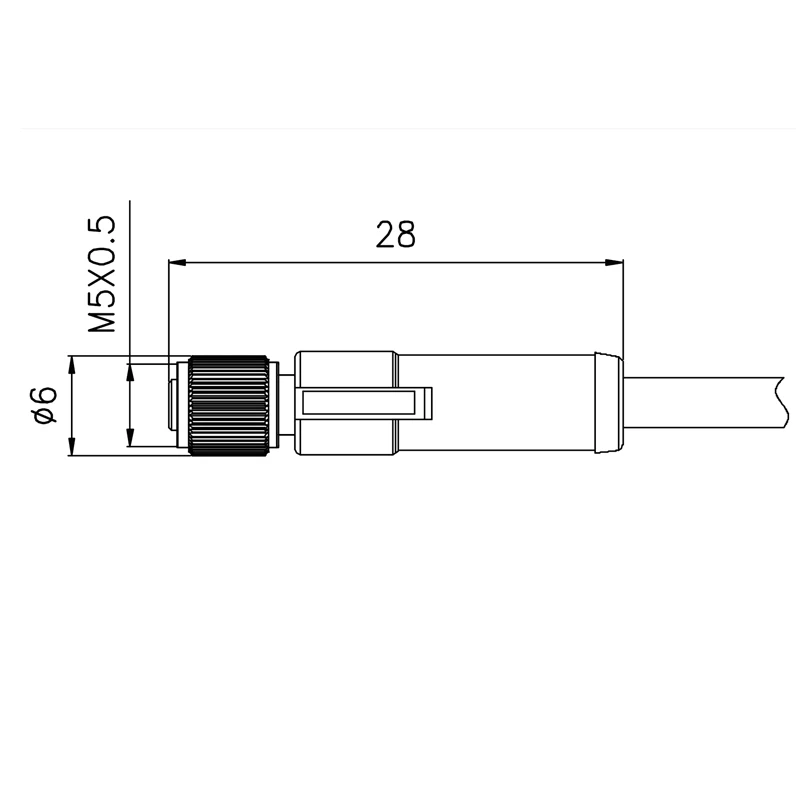

M5 A code male straight molded waterproof connector

A Code Straight Molded M5 Waterproof Connector PA GF Male

Product Description

M5 electronic components for applications such as machine condition monitoring, thickness gages, video probe for remote
 inspection and soil moisture sensors.
 M5 connectors are available with 3 and 4 poles and are equipped with a threaded ring with an anti-vibration lock. The protection
 class is IP67/IP68. The cable parts of M5 connector have overmoulded cables. The outer diameter is 6.5 mm. The rated voltage is 60V, the max. current is 1 A.

Features of M5 connector :

Connector M5 x 0.5 with screw interlock
Connector over-moulded on cable
Threaded ring with vibration resistance
IP67 protection
3 and 4 -pole designs
2 m and 5 m cable length (PVC/PUR) Other cable lengths for quantities of 200 each or more are available upon request

 	 			Product introduction

 			Product Name:M8 connector 5pin 5pole B code female and male IP67 connector overmold M8 connector
model number:M8-A-PS

serIes:M8 Connector
 			Core number:3,4,5,6,8Core
 			Authentication:CE,RoHS
 			waterproof:IP67/IP68
